廣泛用于蒸汽、空氣、水、油品等系統(tǒng)管道中，保護各種計量器、泵機、閥門、疏水器等設備。
|
Type |
Pressure Nominal(MPa) |
Working Temperature(℃) |
Filter Net Eye Number |
APPlicable Media |
|
YG—W |
2.0 |
300 |
20～150 |
Steam，Air，Water，Oil |
|
YG—F |
5．O |
425 |
20～150 |
蒸汽、空氣、水、油 |

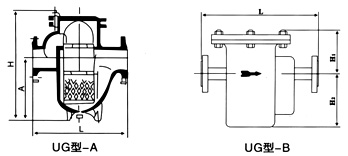

.jpg)
|
Type |
Nominal Diameter(DN)公稱通徑 |
External dimensions(mm)外形尺寸 |
||
|
A |
L |
H |
||
|
UG型一A |
10 |
150 |
80 |
125 |
|
15 |
150 |
80 |
125 |
|
|
20 |
180 |
100 |
153 |
|
|
25 |
180 |
100 |
153 |
|
|
40 |
200 |
155 |
304 |
|
|
50 |
300 |
155 |
340 |
|
|
65 |
340 |
220 |
380 |
|
|
80 |
400 |
250 |
420 |
|
|
100 |
500 |
295 |
502 |
|
|
150 |
600 |
335 |
650 |
|
|
200 |
786 |
395 |
770 |
|
|
UG型一B |
Nominal Diameter(DN)公稱通徑 |
External dimensions(mm)外形尺寸 |
||
|
L |
H1 |
H2 |
||
|
15 |
270 |
90 |
145 |
|
|
20 |
270 |
90 |
145 |
|
|
25 |
270 |
90 |
145 |
|
|
32 |
320 |
125 |
175 |
|
|
40 |
320 |
125 |
175 |
|
|
50 |
320 |
125 |
175 |
|
|
65 |
430 |
140 |
220 |
|
|
80 |
430 |
140 |
220 |
|
|
100 |
430 |
140 |
220 |
|
|
125 |
460 |
160 |
235 |
|
|
150 |
460 |
170 |
235 |
|
|
200 |
460 |
190 |
235 |
|
