液閥主要性能規范
Chief Proprty And Specifieation
|
公稱壓力（MPa）
Normal Pressure
|
0.6 |
1.0 |
試驗壓力（MPa）
Test Pressure |
殼體
Shell |
0.9 |
1.5 |
密封
Seal |
0.66 |
1.1 |
使用介質
Applicable Medium
|
煤漿、糧漿、紙漿、泥漿、活
水砂漿、礦渣、堿液
Admixtvre Of Duffand Water、Pulp、
Studge、Dross Basic Solution |
工作溫度
Working Temperation |
≤100℃ |
氣動漿液閥主要零部件材質
Material Of Main Part
| 體、蓋Body、Bonnet |
不銹鋼、碳鋼、灰鑄鐵
S.S、C.S、C.I |
| 閘板Disc |
碳鋼、不銹鋼
C.S、S.S |
| 閥桿Stem |
不銹鋼
S.S |
| 密封面Sealing |
橡膠、四氟、不銹鋼、硬質合金
Rubber、PTFE、S.S、Carbide Alioy |

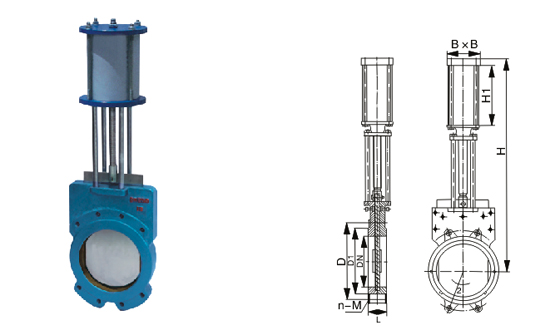

氣動漿液閥主要外形及連接尺寸
Main External And Connecting Dimensions(mm)
| MPa |
DN |
L |
D |
D1 |
B |
H |
n-M |
2 |
| PN0.6 |
PN1.0 |
| 1.0 |
50 |
40
|
40 |
125 |
100 |
115 |
335 |
4-M16 |
45° |
| 65 |
40 |
40 |
145 |
120 |
115 |
363 |
4-M16 |
45° |
| 80 |
50 |
50 |
160 |
135 |
150 |
395 |
4-M16 |
22.5° |
| 100 |
50 |
50 |
180 |
155 |
150 |
465 |
4-M16 |
22.5° |
| 125 |
50 |
50 |
210 |
185 |
190 |
530 |
4-M16 |
22.5° |
| 150 |
60 |
60 |
240 |
210 |
190 |
630 |
4-M20 |
22.5° |
| 200 |
60 |
60 |
295 |
265 |
230 |
750 |
4-M20 |
22.5° |
| 250 |
70 |
70 |
350 |
318 |
280 |
900 |
8-M20 |
15° |
| 300 |
70 |
80 |
400 |
368 |
350 |
1120 |
8-M20 |
15° |
| 350 |
80 |
90 |
460 |
430 |
350 |
1260 |
10-M20 |
11.25° |
| 400 |
90 |
120 |
515 |
482 |
350 |
1450 |
10-M24 |
11.25° |
| 450 |
90 |
120 |
565 |
532 |
350 |
1600 |
14-M24 |
9° |
| 500 |
100 |
130 |
620 |
585 |
350 |
1800 |
14-M24 |
9° |
| 600 |
100 |
140 |
725 |
685 |
430 |
2300 |
14-M27 |
9° |
|
